SVS SB-3000 Piano White, žemų dažnių garso kolonėlė

Gamintojas: SVS
Prekės kodas: N11885
Įsigijimo galimybė: Klausti dėl įsigijimo ir kainos
Mato vnt.: vnt.
1699€

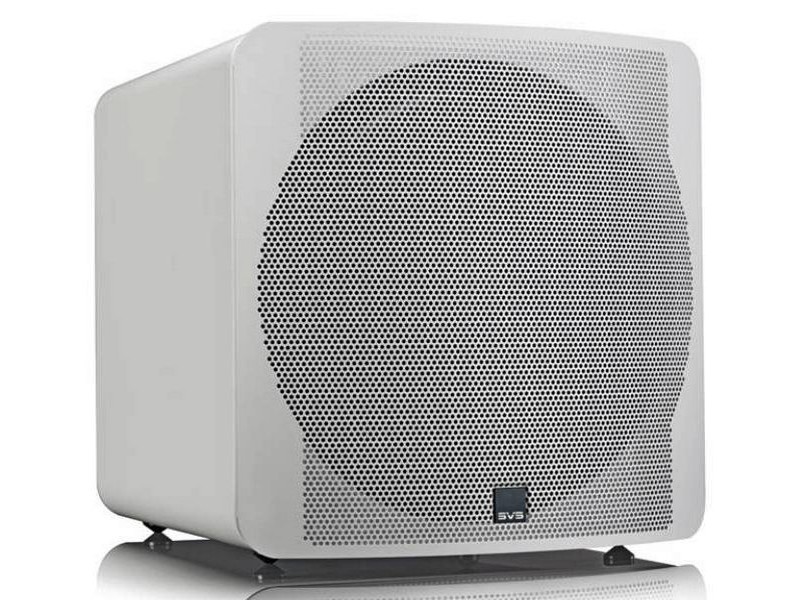

SVS SB-3000 Piano Gloss White, žemų dažnių garso kolonėlė

SVS SB-3000 yra nedidelis, uždaros dėžės tipo, Reference lygio subwoofer‘is, turintis 800W RMS/2500W Peak Sledge STA-800D2 vidinį stiprintuvą su DSP ir inovatyvų SVS žemų dažnių garsiakalbį su didelės eigos 13“ membrana.
SB-3000 parametrų valdymui buvo sukurta Bluetooth ryšiu, realiu laiku veikianti Smartphone App programėlė, kurios pagalba galima reguliuoti garsumą, parametrinio EQ, poliariškumo, DSP parametrus, išankstinius ar asmeninius ir kitus nustatymus.
Subwoofer'io korpusas yra labai tvirtas - turi dvigubo storio MDF priekinę panelę ir vidines standumo pertvaras.
SB-3000 idealiai tinka etaloniniam žemų dažnių atkūrimui audiofilinėse muzikos sistemose ar aukštos klasės namų kino garso sistemose.



Frequency Response / Acoustic Data:


• 18-270 Hz ± 3 dB;

• Roll-off slope specifically optimized to take maximum advantage of available room gain;

• 2-meter ground plane away from reflective structures (quasi-anechoic);


Subwoofer Specs:


• Premium Black Ash and Piano Gloss Black finish options;

• Protective non-resonant steel mesh grille;

• Front-firing 13 inch high-excursion SVS driver;

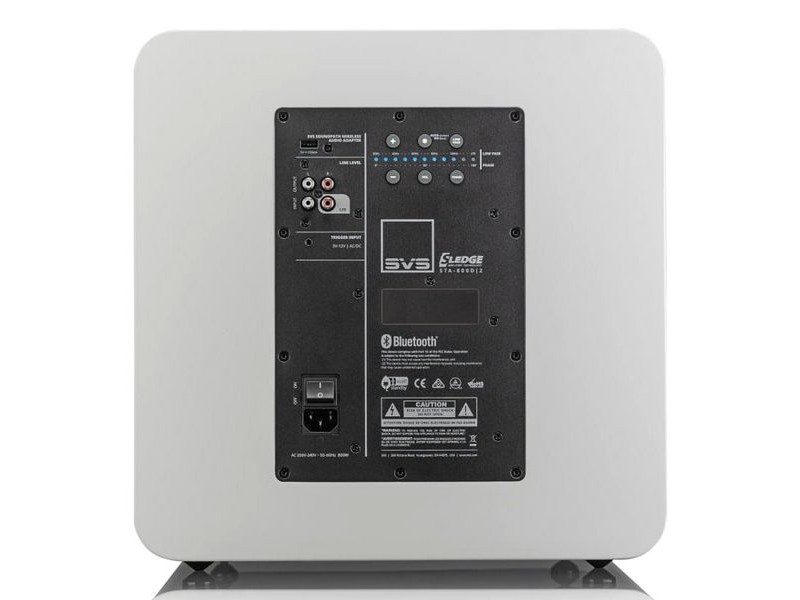

• Rear-mounted amplifier with Intelligent Control Interface(ICI);

• Screw-in rubber feet;

• Robust Medium Density Fiberboard (MDF) cabinet construction;

• Dimensions (w/ grille): H397xW385xD451 mm;

• Weight: 24.7 kg.;


Driver Specs:


• All New Proprietary 13" high-excursion SVS 3000 Series Subwoofer Driver.

• SVS first flat edge wound split-wind voice coil provides maximum magnetics at high excursion while reducing mass and improving overall driver efficiency. Built around a premium grade 2” polyimide impregnated fiberglass former for maximum thermal conductivity.

• Two massive, dedicated toroidal ferrite magnets generate unparalleled levels of magnetic force to drive the highest levels of excursion, SPL, and start/go power for the deepest and most authoritative bass possible.

• All-new High density FEA-optimized cast aluminum basket provides unequaled levels of rigidity, tensile strength, and energy transference available from a subwoofer.

• Four balanced 24-strand silver plated Litz wire high temperature leads woven through the 6.5" 2-ply Nomex composite spider provide a pristine electrical connection from the amplifier to the voice coil.

• All new 13" 1050 Aluminum vented cone ensures a light, rigid, and neutral radiating surface.

• Precision machined motor elements and narrow tolerance suspension parts produce unmatched linearity at full excursion for exceptionally tight and fast output, even at reference volumes.

• Extreme oversized low carbon vented 1008 steel U-yoke and top plate provide superior cooling and improved magnetics for maximum performance and efficiency.

• 6063 Aluminum shorting sleeve reduces gap induction and distortion, enhances thermal conductivity, and improve magnetic linearity.

• Nickel-plated high-tension spring terminals.

• Proprietary injection molded gasket and SBR extreme-excursion surround maintains ideal pistonic motion for pinpoint accuracy and control.


Amplifier Specs:


• Massively powerful Sledge 800W continuous Class D design with 2500W+ of Peak Power.

• High efficiency cool-running Class-D switching topology with massive 25 Amp 600 Volt MOSFET’s result in lower EMI and highest efficiency while providing effortless power to produce SPLs and low frequency output with pristine clarity well beyond reference listening levels.

• High resolution 50MHz Analog Devices Audio DSP with double precision 56bit filtering is the most advanced subwoofer processor available for perfect audio reproduction.

• Unmatched intelligence from user adjustable low pass, phase, polarity and room gain compensation with three parametric EQs for absolute best alignment with speakers and optimized performance in any room.

• Groundbreaking SVS Bluetooth DSP control app for iOS and Android devices with three user presets allow custom tuning for every room and system.

• RCA stereo input/output with ultra-wide input voltage for consumer and professional audio applications.

• All new rear panel Intelligent Control Interface (ICI) user interface with bright back-lit controls.

• Auto/On and 3-12V AC/DC trigger for Maximum Installation Convenience.

• Input impedance 16kohm (unbalanced RCA).

• Green 0.5W low standby power consumption.

• RoHS compliant, lead-free construction, world-wide safety certifications.


SVS App Specs:


• The most powerful and flexible Bluetooth controlled subwoofer DSP app, works with both iOS and Android operating systems.

• Easiest and most convenient way to adjust crossover frequencies, parametric EQ, polarity, room gain and all other bass management functions.

• Three convenient custom presets allow for perfect tuning in any room or system, from your favorite seat.

• Single tap adjustment for controlling variable port tuning with standard, extended and sealed modes.

• Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface.

• Easy-to-follow tutorial provides clear guidance for all functions.


Included Accessories:


• Protective non-resonant steel mesh grille;

• Iso-elastomer feet included;

• Extra heavy-duty, high current 6' power cord;


SB serijos subwoofer'ių palyginimas:




SB-1000 Pro SB-2000 Pro SB-3000

Driver Size

12" 12" 13"

Continuous (RMS) Power

325W 550W 800W

Peak Power

820W+ 1500W+ 2500W+

Frequency Response ±3dB

20-270 Hz 19-240 Hz 18-270 Hz

Cabinet Finish Options

Piano Gloss Black, Piano Gloss White, Black Ash Piano Gloss Black, Black Ash Black Ash, Gloss Black

Subwoofer Dimensions

H342xW330xD375 mm H372xW360xD395 mm H397xW385xD451 mm

Weight

11.9 kg. 17.5 kg. 24.7 kg.

Cabinet Configuration

Sealed Sealed Sealed

Useable Low Frequency Extension

18Hz 17Hz 15Hz

Max Low Frequency Output at 30Hz

116.3dB 121.0dB 126.8dB

Inputs

RCA, Speaker Level, 12V Trigger RCA, 12V Trigger RCA, 12V Trigger

Outputs

RCA RCA RCA

Standby Mode

yes yes yes

Low Pass Control

yes yes yes

Low Pass Slope

  variable 6dB, 12dB, 18dB or 24dB / octave

Phase Control

0 - 180 degrees continuous 0 - 180 degrees continuous 0 - 180 degrees continuous

Parametric Equalizer

yes Yes yes

Room Gain Compensation

yes Yes yes

Grille Material

ABS fabric mesh grille ABS fabric mesh grille Steel Mesh
