Wyrestorm EX-70-G2, HDMI signalo perdavimo UTP kabeliu sistema

Wyrestorm EX-70-G2 sistema gali būti naudojama kai HDMI signalą reikia perduoti dideliu atstumu.

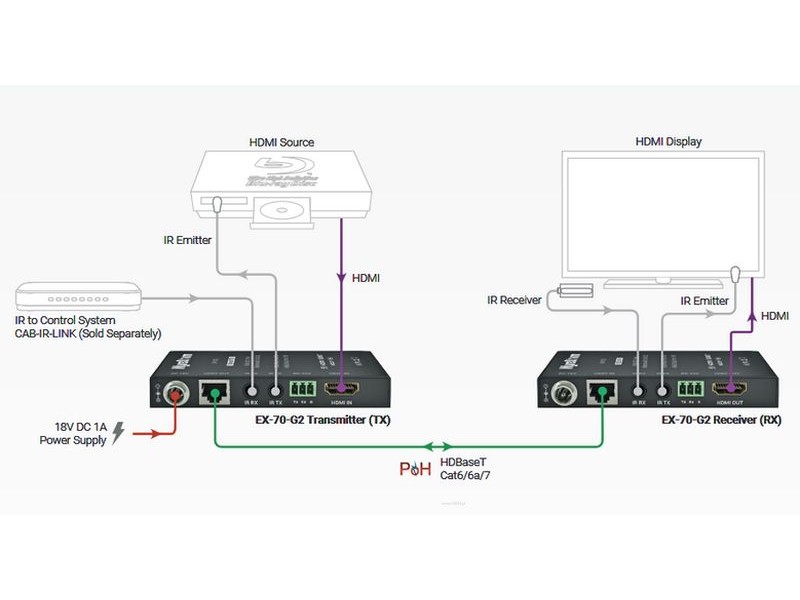

Sitemos siųstuvas (Tx dalis) HDMI signalą konvertuoja ir siunčia UTP kabeliu.
Imtuvas (Rx dalis) UTP kabeliu gautą gautą signalą atverčia atgal į HDMI formatą.

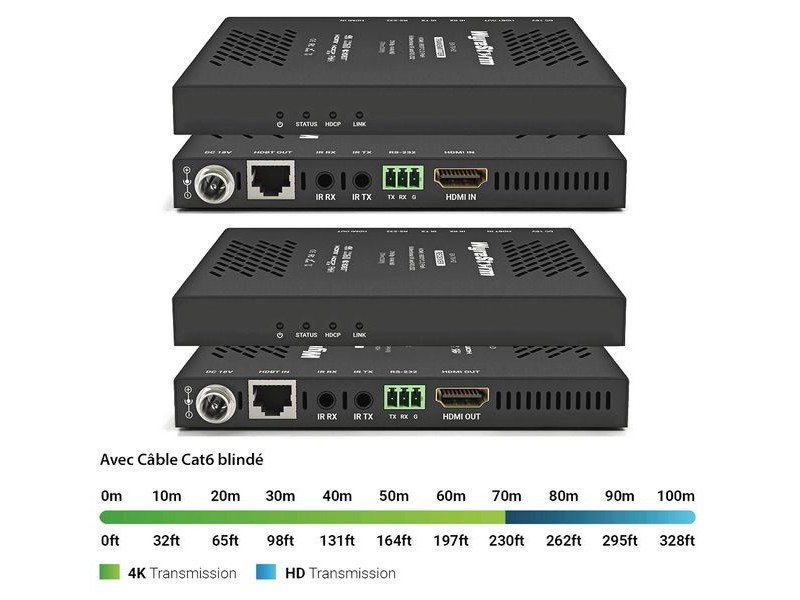

Maksimalus CAT6 kabelio ilgis 1080p/1920x1200 signalo perdavimui - 70 metrų, o 4K/24/25/30/60 signalui - 35 metrai.
Maksimalus CAT6a/7 kabelio ilgis 1080p/1920x1200 signalo perdavimui - 100 metrų, o 4K/24/25/30/60 signalui - 70 metrų.


Pagrindinės savybės:

• Compatible with 2160p 4:2:0 60Hz or 4:4:4 & RGB 30Hz Content;
• HDCP 2.2 encryption compliant;
• 2ch PCM and multichannel audio supported up to DTS:X and Dolby Atmos;
• 2-Way PoH provides flexible installation options allowing TX or RX only to be powered;
• Bidirectional IR & RS-232 pass-through;
• Automatic EDID Management (copy from sink device);
• Supports CEC communication between devices;
• Low profile 15mm chassis allows easy installation behind flush-mounted screens;
• Threaded DC socket for secure power connection;
• Visual LED indication for power supply to units, signal status to show established display connection, HDCP presence in signal and HDBaseT™ link between devices.

Pilnos specifikacijos (pdf)
